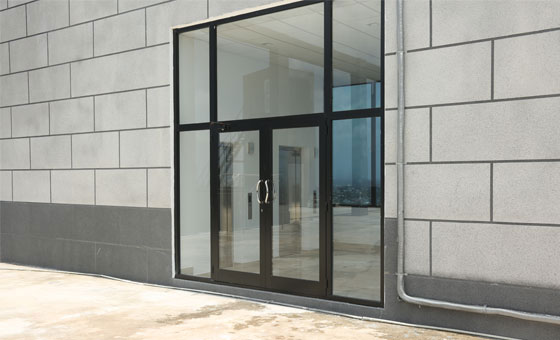

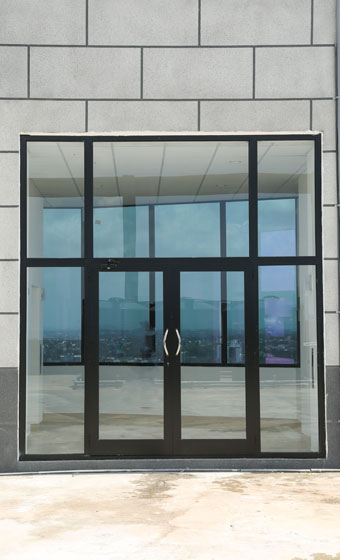

Swing Doors


This series originated as an extension and completion of the 45N series with notable features, made for large dimension windows and high wind load. The range for the windows uses the central gasket concept to assure the final product high resistance against weather conditions. Furthermore the same hardware used for thermal break systems has been applied to this series, which allows it to reach relevant dimensions and capacity loads.

Our Related Projects

Technical Features

Raw materials

  • Extruded sections in alloy primarily aluminum
  • EN AW-6060(UNI EN 755-2)T5
  • Gaskets/static and dynamics in EPDM compound


  • Frame depth 55mm
  • Shutter depth 65mm

The frames and shutters are externally flat and internally overlapping , for the windows and balcony doors.

Rounded and enlarged profiles for outer frames and open-able shutters and column section with a depth of 105mm are also available to different static and architectural needs.

Range of sections for flat doors have an outer frame and shutter depth 55mm.


This series allows the installation of a range of glass from 5-30 mm thickness . The glass is fixed by various types of glass beads-squared, rounded or tubular(this last version is particularly suited for shop windows or large elements), with internal and external gaskets. The external tight gaskets are continuous and don’t show juncture in the corners.

Possible manufacturing solutions

One or two shutter casements opening outside, 1,2,3,4 shutter casements and balcony doors opening inside, tilt windows, turn and tilt, Turn-turn and tilt, tilt and slide doors, swing doors, strip windows, doors opening inside and outside, wall covering for industrial factories, Top fixed light, shop windows.
